Modules

A transparent overview of what exists, what’s being built, and what’s still just a sketch on the bench.

Prototype In development Concept
Analog Hybrid Digital

NULLPUNKT

Low-end analyzer tool — a stage-ready way to verify mono compatibility, phase coherence, and low-frequency stability for kick+bass (or any stereo low end). The display runs on an analysis-only low-pass with fast presets, so you can zoom into SUB / LOW / BASS without touching the audio path. Tool-free firmware updates via audio (WAV).

Prototype Digital 8HP

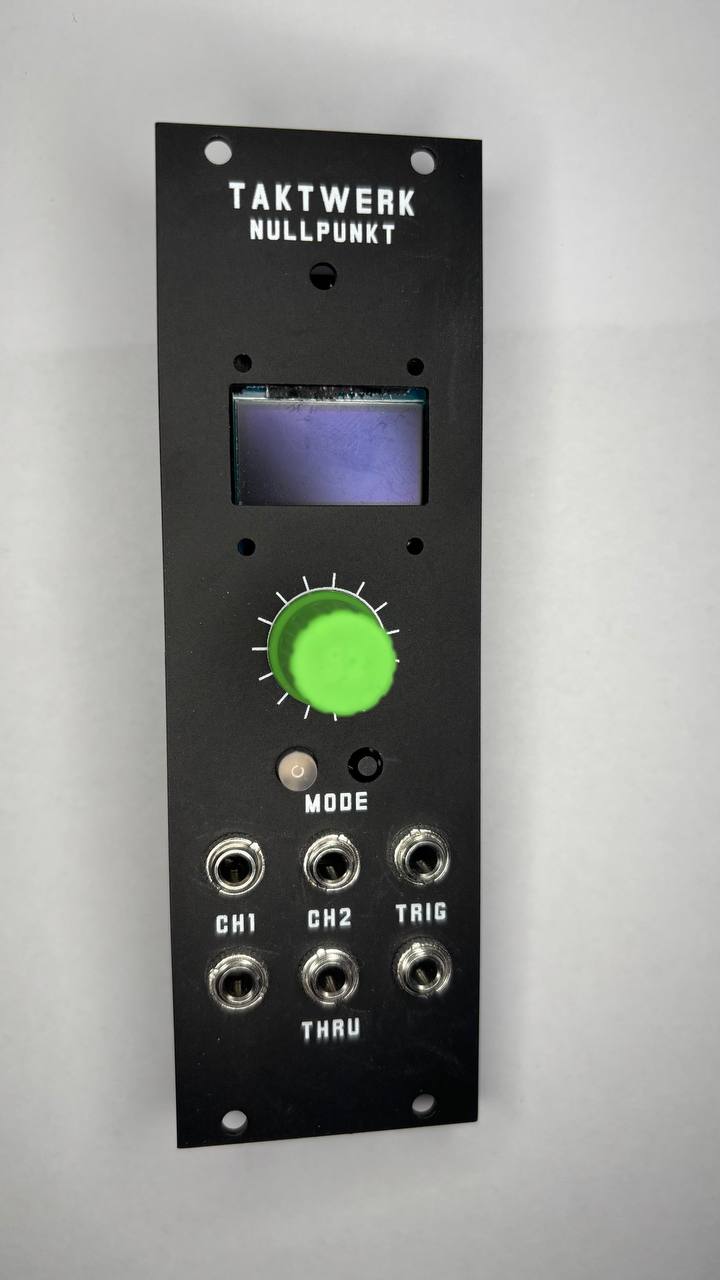

NULLPUNKT image 01

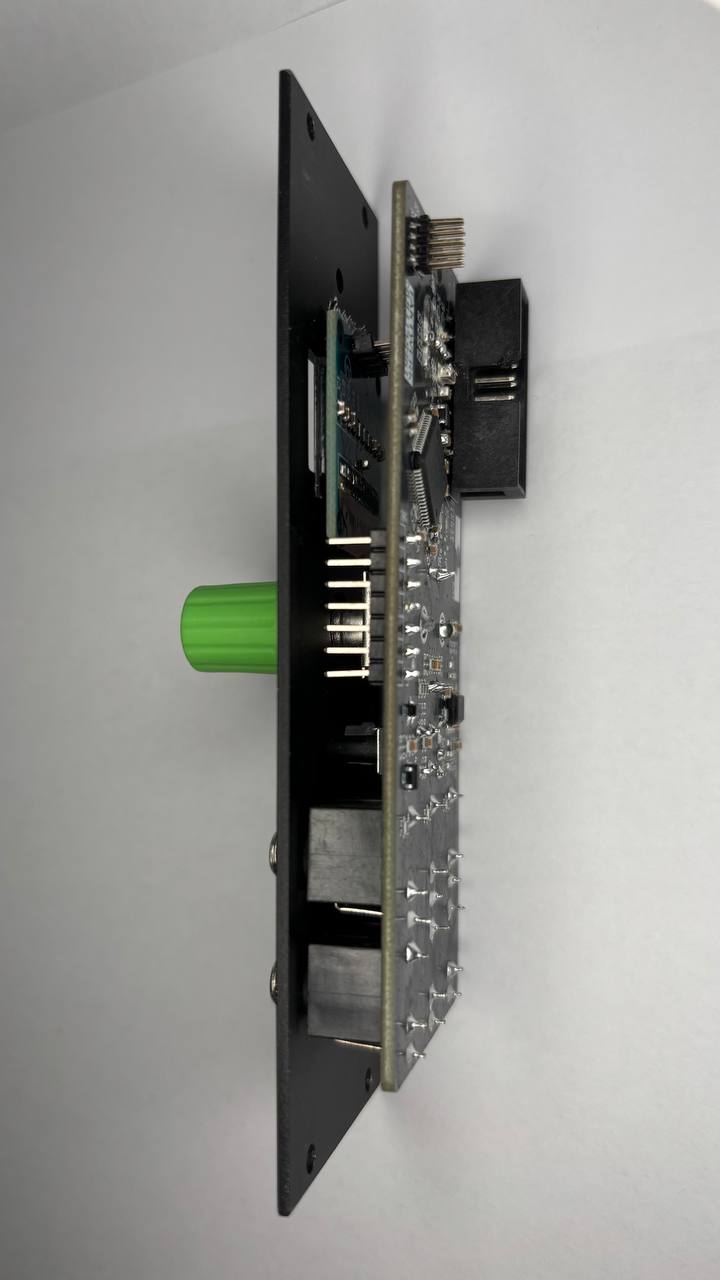

NULLPUNKT image 02

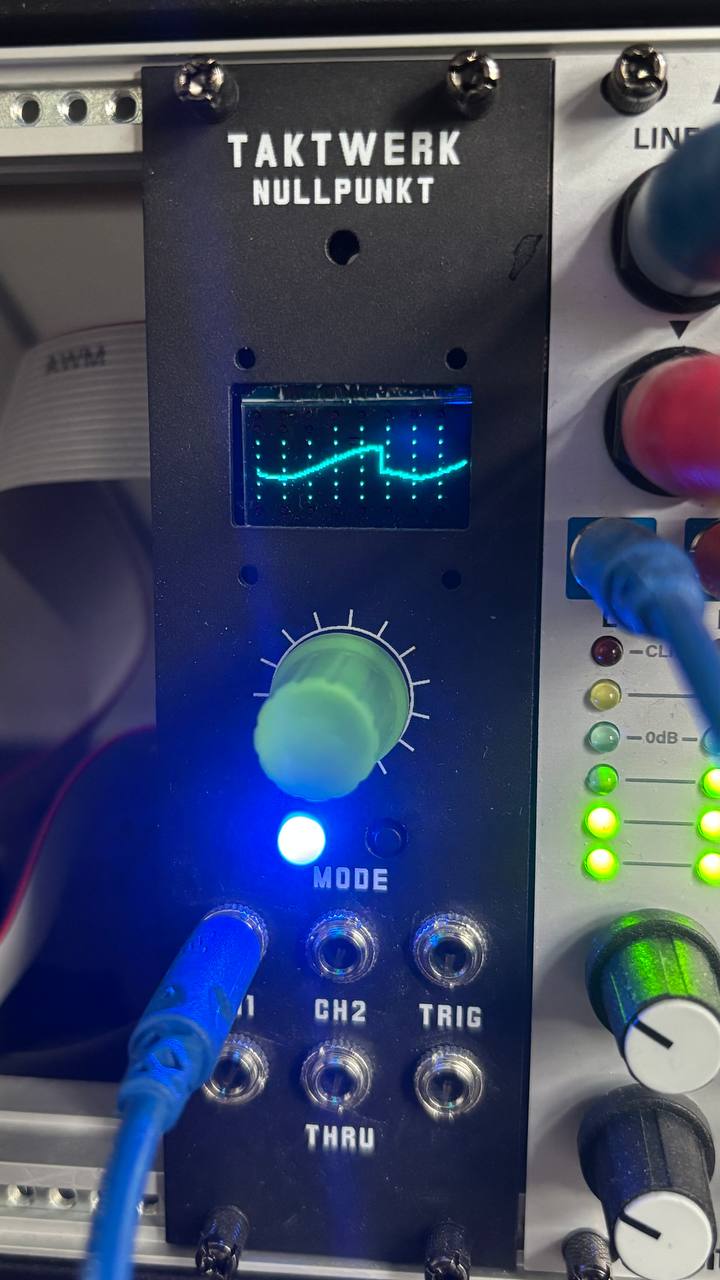

NULLPUNKT image 03

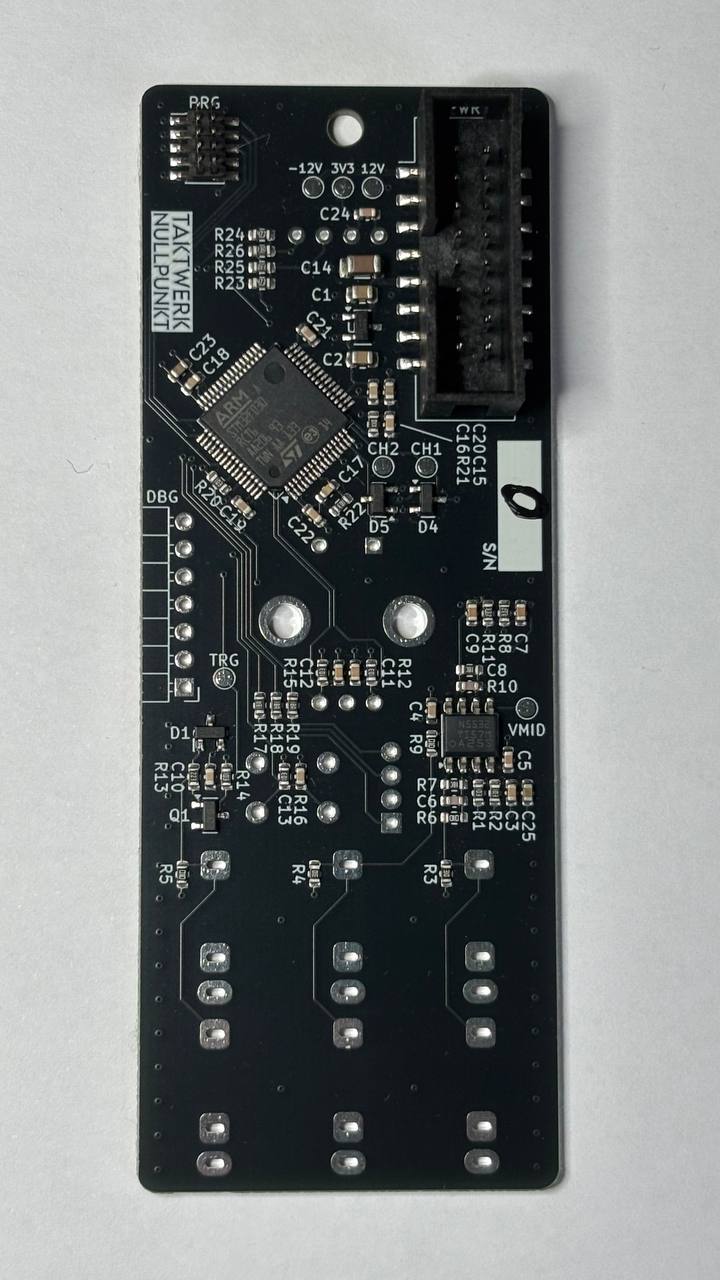

NULLPUNKT image 04

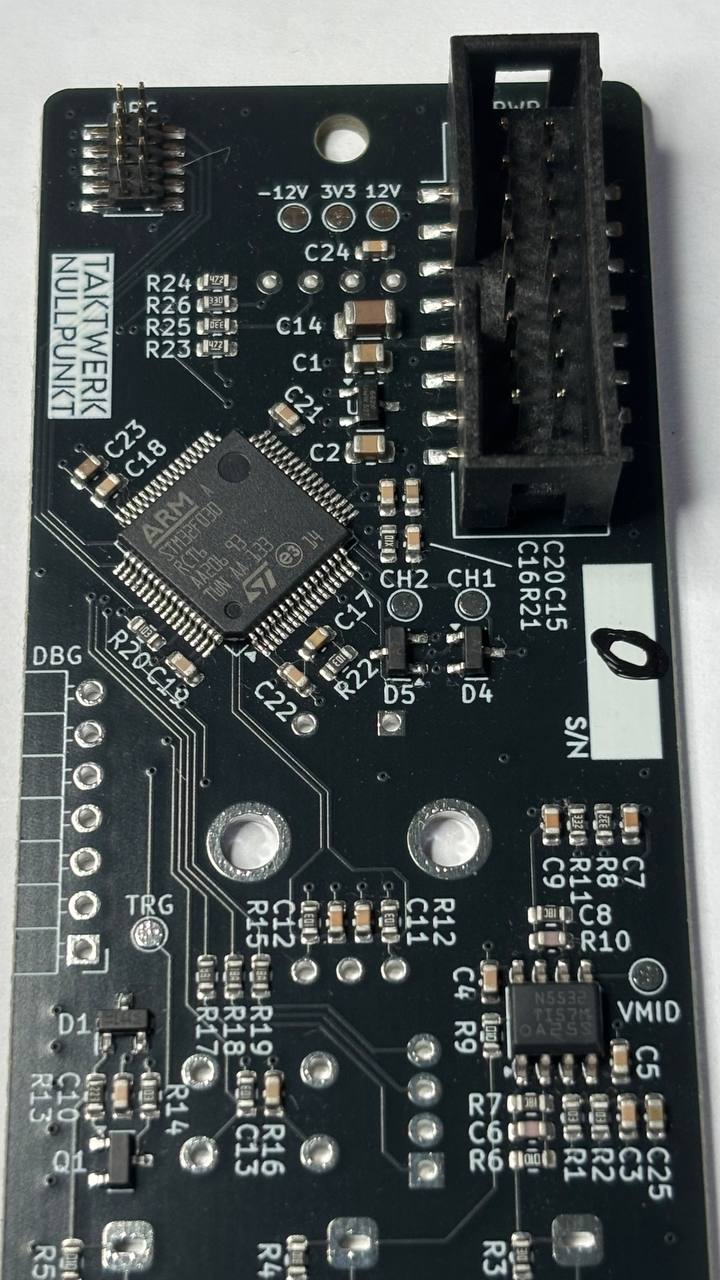

NULLPUNKT image 05

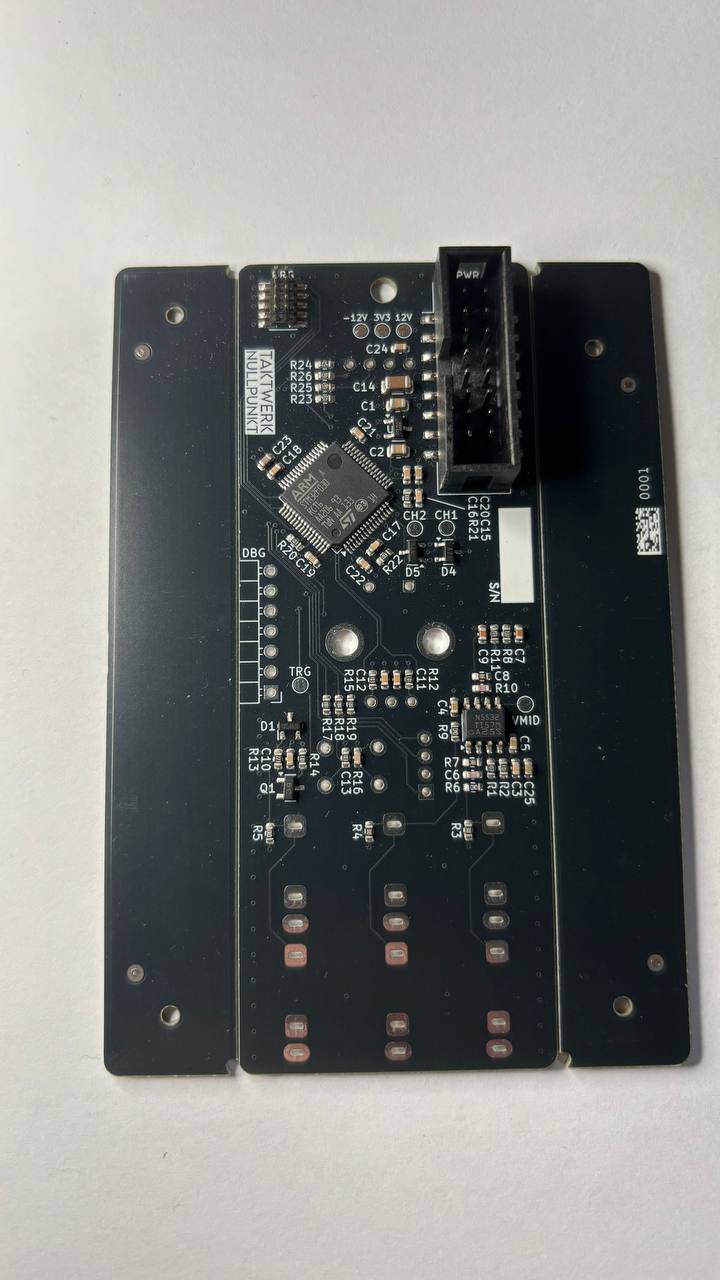

NULLPUNKT image 06

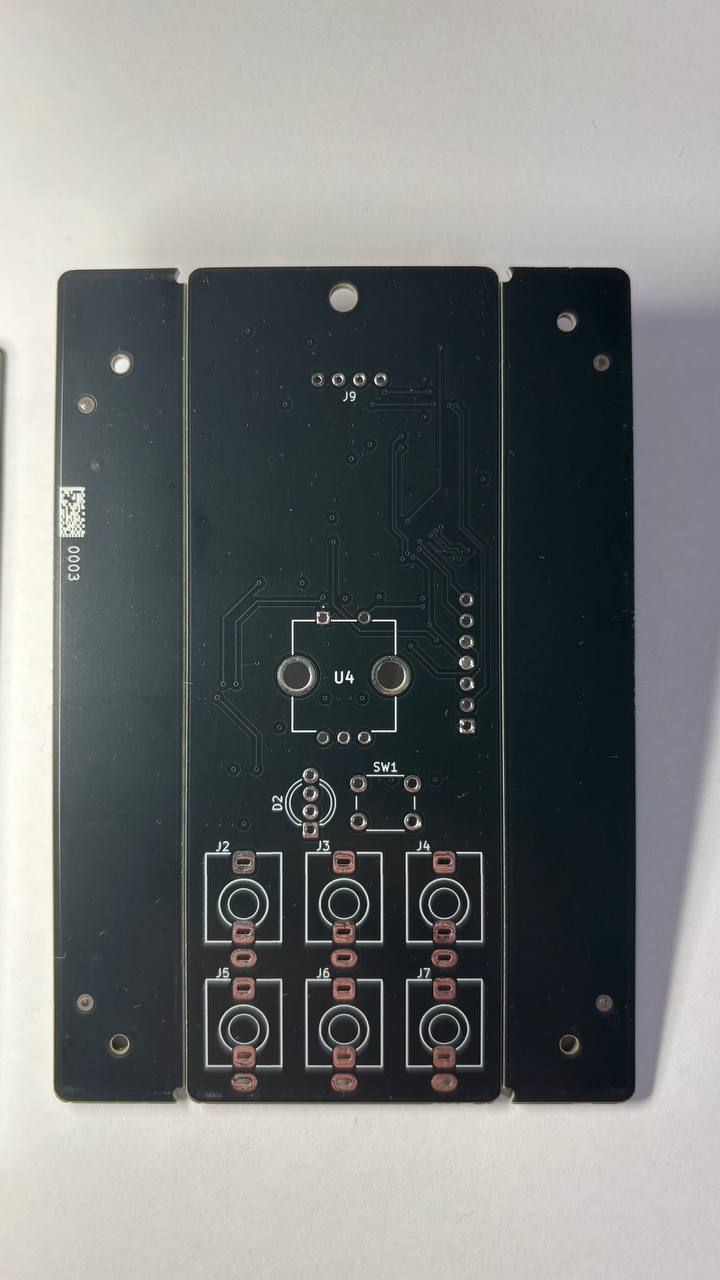

NULLPUNKT image 07
Category: Low-end analyzer / mono tool
About: NULLPUNKT focuses on the parts of a mix that most often betray you on big systems: sub mono, phase drift, and low-end cancellation.

The core view is a low-end goniometer (XY) paired with a mono / cancellation meter. A user-selectable analysis low-pass limits what the display and metrics “see” — perfect for answering questions like “Is my sub safe in mono?” (SUB) or “Where does my low end start to smear?” (LOW / BASS).

Important: the low-pass is analysis-only. The CH1/CH2 THRU signals remain unprocessed.
Format: 8HP
Core: STM32F030RCT6
I/O: CH1 In (Thru) + CH2 In (Thru) + Trigger In (Thru)
UI: 1.3" 128×64 OLED + Encoder (push) + Button + RGB LED
Analysis LPF: Presets SUB 100 Hz / LOW 160 Hz / BASS 250 Hz (display + metrics only)
Status: Hardware V1 complete; firmware in progress (Low-End Gonio / Mono+Cancel Meter / Phase+Correlation + Audio Update)

SKALA

Ultra-compact fully analog LED level meter — a fast, stage-ready way to see headroom, gain staging and transient peaks at a glance. Musical -3dB scaling, designed for fast response and clear readability in a dense patch.

Prototype Analog 4HP

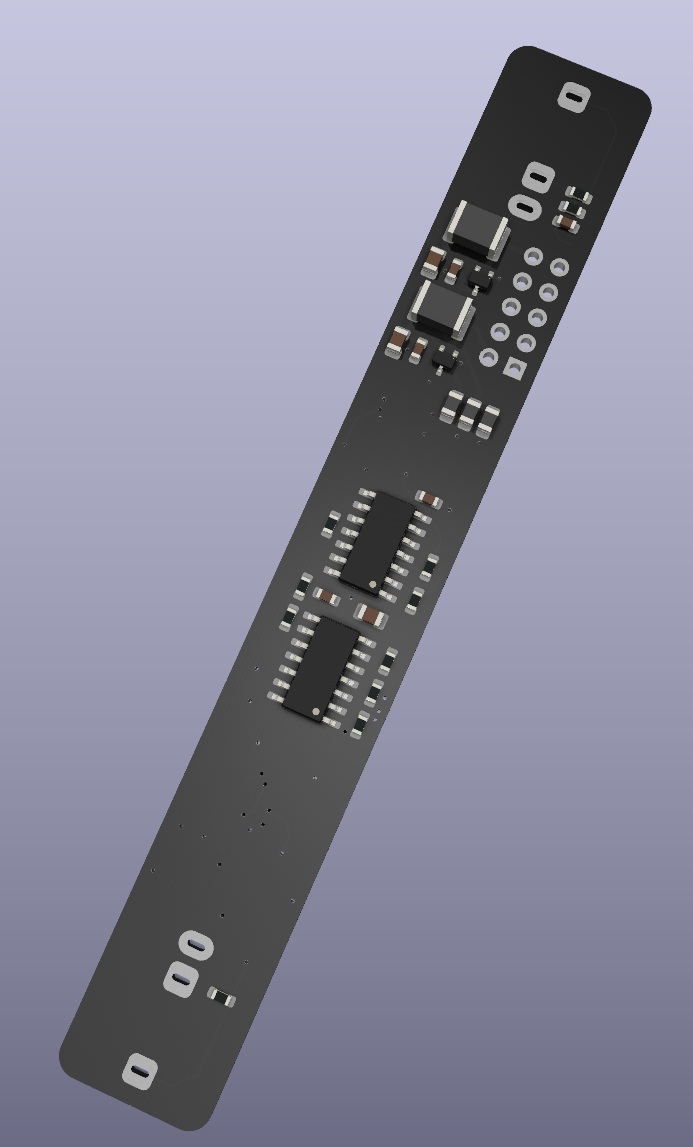

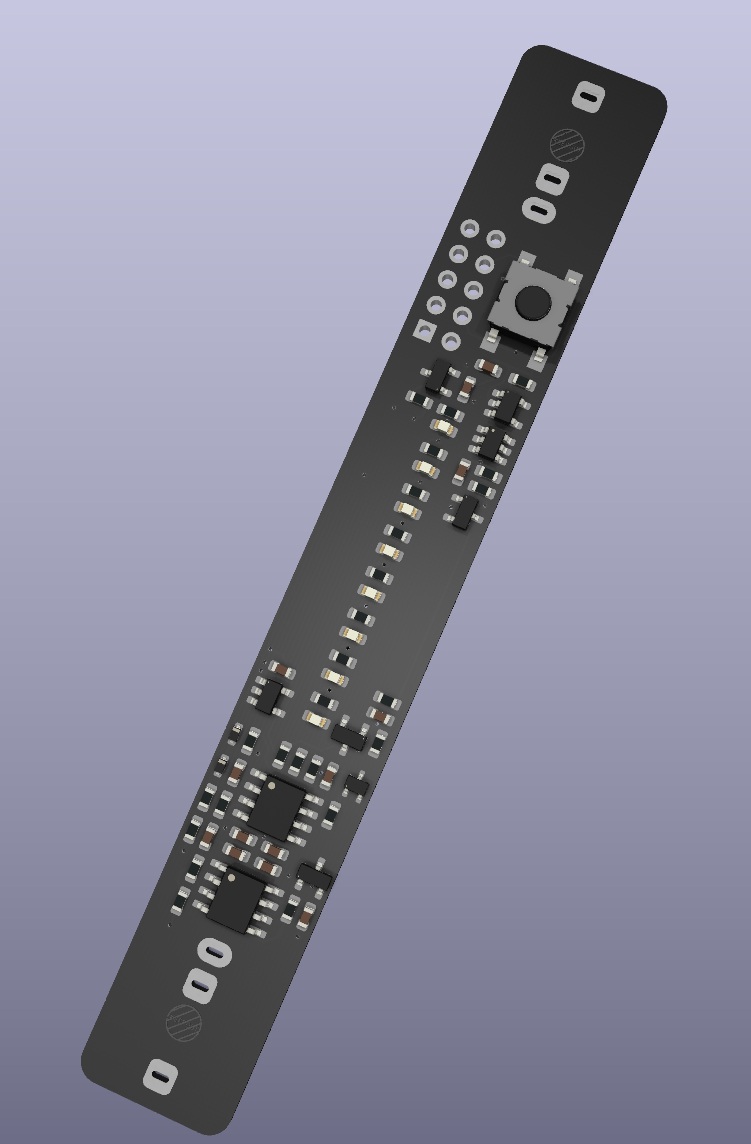

SKALA image 01
SKALA image 02
Category: LED level meter / gain staging tool
About: SKALA is built for quick, repeatable gain staging in Eurorack and small live setups: see what the signal is doing before it hits saturation, VCAs, filters, or recording.

The display uses musical -3dB steps and a fast response tuned for transients, so kick/bass peaks stay readable without turning into a blur.
Format: 4HP
Core: Fully analog with no LM3914 but discrete comparators
I/O: Audio In + Buffered Audio Out
UI: LED bar + Range switch + Momentary button (electronic latch with MOSFET)
Scaling: Musical -3dB steps
Status: PCB & panel design finalized; ready for manufacturing

SCHUBKRAFT

Analog kick + bass bus processor — low-voltage ECC82/12AU7 tube glue with a parallel wet path (Sub-Cut + Tone), a dedicated “Spice” harmonics branch, CV-ready VCA blend, and a PRE-CLIP indicator for repeatable gain staging.

In development Analog 14HP
Category: Tube saturation / bus glue
About: SCHUBKRAFT is a fully analog “tube glue” bus processor for Eurorack — built to make kick and bass (or any two low-end sources) lock together fast.

Two inputs are mixed to a common bus and sent into a parallel wet path. Sub-Cut keeps the wet sub clean, while a starved-plate ECC82/12AU7 adds harmonic density, saturation, and gentle compression. A Tone filter smooths the upper harmonics, and an SSI2164 VCA blends wet back into dry — manually and via CV.

For extra presence there’s a dedicated Spice branch: high-pass filtered, asymmetric diode harmonics that sit “on top” without turning the foundation into mush. The PRE-CLIP indicator with hold time makes gain staging repeatable on stage — you can see when the bus is in the sweet spot.
Format: 14HP
Core: ECC82 / 12AU7
I/O: Kick In + Bass In + Blend CV In + Audio Out
UI: Kick Level + Bass Level + Drive + Glue switch + Blend (+ CV amount) + Sub Cut + Sub/Tight + Tone + Output Level + Pre Clip LED
Status: In development (schematic & layout iteration)

FRAKTUR

Clock / timing utility — stable sync with hands-on control.

Concept Hybrid TBD
Category: Clock / timing utility
Format: TBD
Core: TBD
I/O: TBD
UI: TBD
Status: Design exploration

BLICKFANG

Performance CV → DMX interface — translate modular gestures into stage lighting with a small OLED, fast on-device mapping, and presets. Low-latency output via a 32-channel window, with an isolated XLR DMX512 out. Tool-free firmware updates via audio (WAV).

Concept Digital Powered by Taktwerk RTOS 10HP
Category: CV → DMX interface
About: BLICKFANG is built to make music visible — a hands-on bridge from Eurorack control voltages to real-world DMX lighting (stage fixtures, LED bars, and installations).

Eight CV inputs can be mapped quickly on-device using a small OLED + encoder workflow: set a DMX window start address, assign channels, dial in scaling/response, and store everything as presets for repeatable shows.

The output stays stage-safe and predictable: an isolated XLR DMX512 out, low-latency short-frame sending (32-channel window), and a master control for global intensity / blackout behavior. Firmware updates are intentionally “computer-free” — load new builds via audio (WAV).
Format: 10HP
Core: STM32
I/O: 8 CV inputs; DMX512 out (XLR, isolated)
UI: Small OLED + Encoder (push) + Master knob + RGB LEDs
Status: V1 baseline: 32-channel DMX window (1–481) + presets + low-latency output + tool-free audio (WAV) firmware updates; RTOS integration planned

SCHWARZFELD

Dark drone synth concept — slow textures, heavy tone, and controllable instability.

Concept Hybrid Powered by Taktwerk RTOS TBD
Category: Dark drone synth
Format: TBD
Core: STM32H7 with external RAM
I/O: 3,5" TFT Display
UI: TBD
Status: Concept + research; RTOS integration planned
